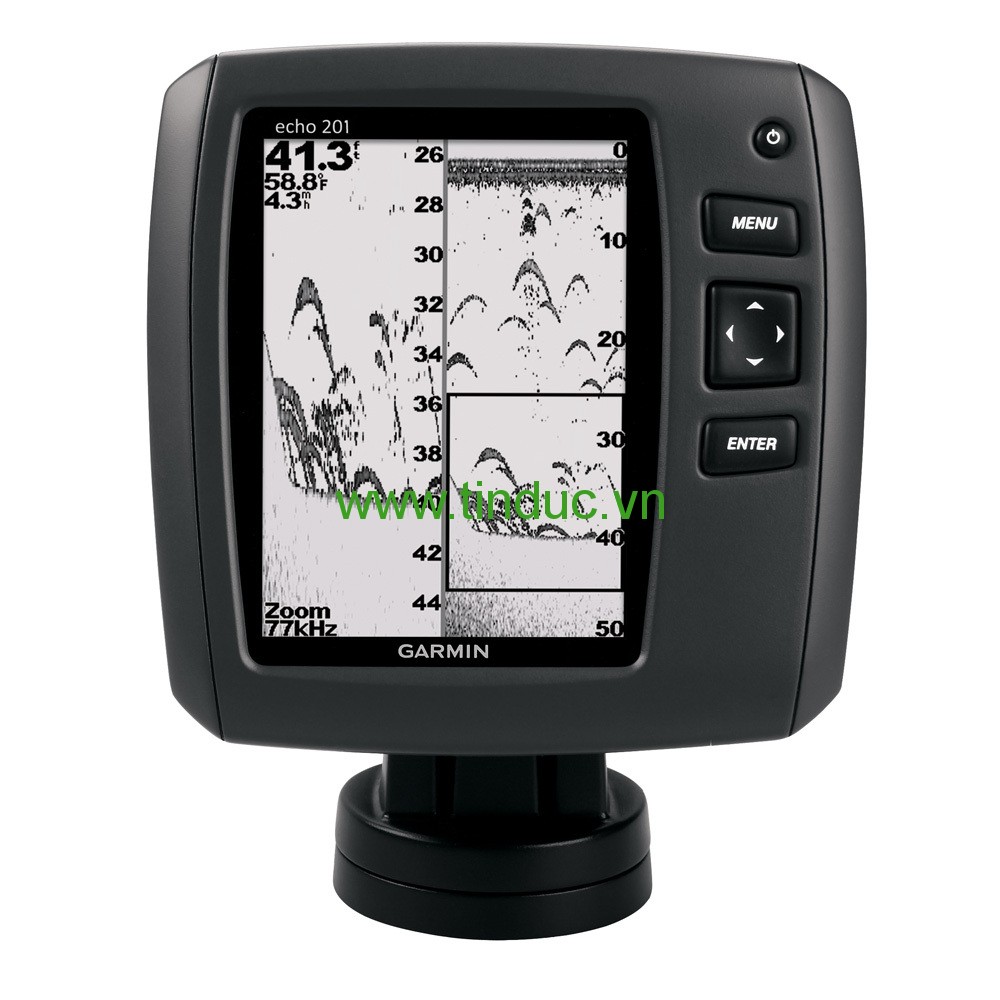

A Powerfully Simple Fishfinder
- Exclusive advanced HD-ID™ sonar with or without transducer (depending on version)
- 5-inch diagonal, 16-level grayscale display
- Transmit power (RMS)/(Peak-To-Peak): 300 W/2,400 W
- Maximum depth: 1,750 feet¹
- Frequency: 77/200 kHz included (supports 50/200 kHz)
The powerful, simple-to-use echo 201 has the advanced sonar features you’d expect to find only on much higher-priced units. The built-in Garmin advanced HD-ID sonar with or without a 77/200 kHz transducer (supports a 50/200 kHz transducer, sold separately) gives you excellent target separation and fish arch definition on the crisp 5-inch, grayscale display. Its sonar transmitter with 2,400 W peak-to-peak power output dives down to a maximum depth of 1,750 feet¹ — and Smooth Scaling™ graphics provide uninterrupted imagery when switching between depth-range scales.
Mount and Go
Comes ready-to-go with a quick-release tilt/swivel mount and transom/trolling transducer mount kit. So you can get right to fishing.
Physical & Performance
|
|
Unit dimensions, WxHxD
|
6.0” x 5.9” x 1.8” (15.2 x 15.0 x 4.6 cm)
|
|
Display size, WxH
|
2.9” x 4.0” (7.4 x 10.16 cm); 5” diag, (12.7 cm)
|
|
Display resolution, WxH
|
320 x 480 pixels
|
|
Display type
|
16-level grayscale, HVGA
|
|
Weight
|
17.6 oz (500g)
|
|
Water rating
|
IPX7
|
Features & Benefits
|
|
Audible alarms
|
Yes
|
|
Dual-frequency (50/200 kHz) sonar capable
|
Yes
|
|
Dual-beam (77/200 kHz) sonar capable
|
Yes
|
|
Split-screen zoom
|
Yes
|
|
Ultrascroll® (displays fish targets at higher boat speeds)
|
Yes
|
|
Fish Symbol ID (helps identify fish targets)
|
Yes
|
|
AutoGain Technology (minimizes clutter, maximizes targets)
|
Yes
|
|
Whiteline (indicates hard or soft bottom)
|
Yes
|
|
Adjustable depth line (measures depth of underwater objects)
|
Yes
|
|
A-scope (real time display of fish passing through transducer beam)
|
Yes
|
|
Bottom lock (shows return from the bottom up)
|
Yes
|
|
Water temperature log and graph
|
Yes
|
|
Water temperature sensor included
|
Yes
|
|
Water speed capable (displays speed on water)
|
Yes
|
Other Specs
|
|
Frequencies supported
|
50/77/200 kHz
|
|
Transmit power
|
300 W (RMS)/2,400 W (peak to peak)
|
|
Voltage range
|
10-28 Vdc input
|
|
Maximum depth
|
1750 ft @ 77 kHz, freshwater
|
|
Cone angle
|
60º or 120º (dual beam)
|
|
Additional
|
HD-ID Tracking Technology
Sonar History Rewind
|
With Transducer
- echo 201
- Dual-beam transducer with transom mount and trolling motor mount
- Tilt/swivel quick-release mount
- Power cable
- Documentation
Without Transducer
- echo 201
- Tilt/swivel quick-release mount
- Power cable
- Documentation
