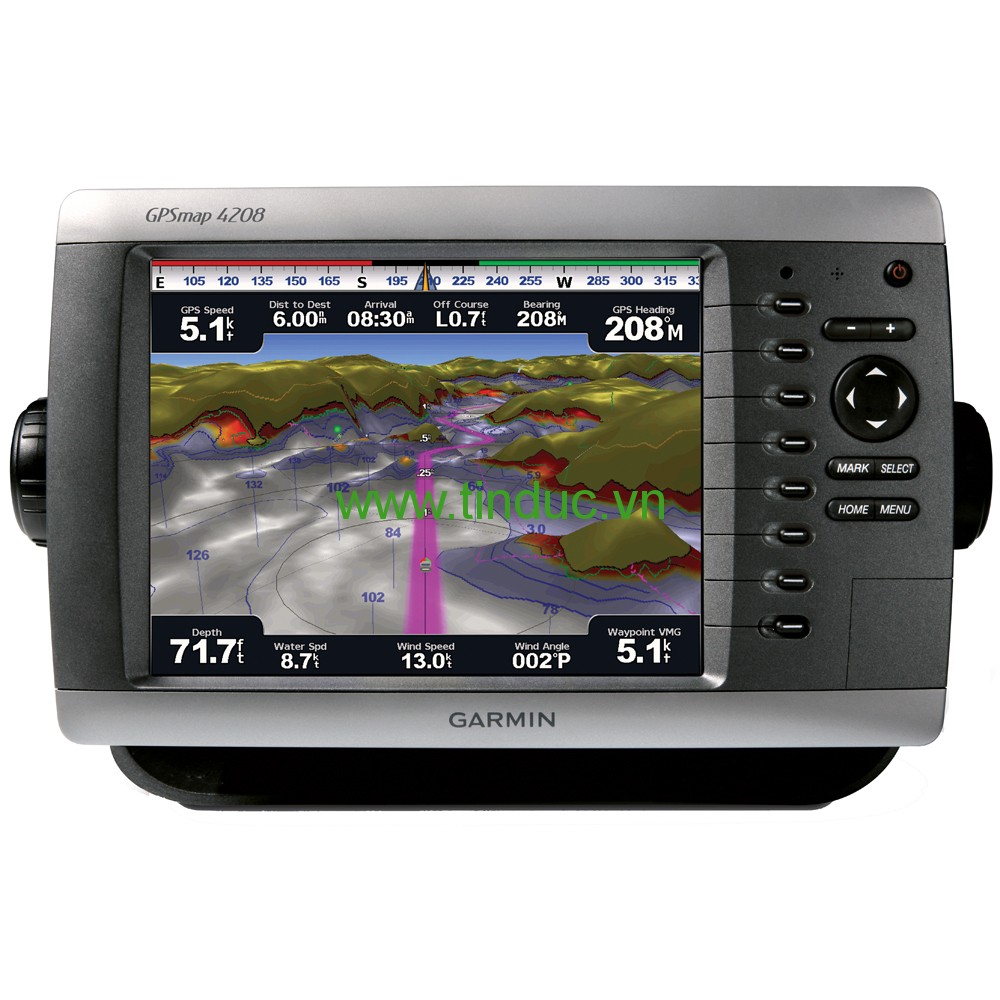

This preloaded, offshore chartplotter combines the power of networking with brilliant color and slim-line design. The GPSMAP 4208 has preloaded BlueChart® g2 maps of the U.S. coast and displays them on an 8.4” (21.34 cm) VGA display with video-quality resolution. By connecting to the Garmin Marine Network, you can add sonar, radar and weather. For even more enhanced features, you can add the optional Bluechart® g2 Vision® card (sold separately).
View Detailed Graphics and Video
The 4208 features highly-detailed BlueChart g2 marine cartography of the coastal U.S., including Alaska, Hawaii and the Bahamas. This data provides detailed coastlines, shaded depth contours, navaids, port plans, wrecks, restricted areas and tide and current information. For other areas, the 4208 has a worldwide basemap with high-quality satellite images in place of more traditional maps. With the SD™ card slot, you can add additional maps without having to connect to a computer.
The 4208’s high-speed processor draws maps quickly, and its simple intuitive interface makes navigating easy. To keep tabs on your engine room or other area of your boat, you also can connect a live video feed with the 4208’s video input and output options.
Add Extras with BlueChart g2 Vision
With the optional BlueChart g2 Vision SD card, you can add a whole new dimension of exceptional features to your chartplotter.
- MarinerEye view and FishEye view provide you a 3-D perspective of map information, both above and below the waterline.
- High-resolution satellite images and aerial photographs help you orient yourself in unfamiliar areas.
- Auto guidance technology searches through all relevant charts to create a route you can actually follow — one that avoids obstacles, shallow water, buoys and other obstructions.
Connect to the Garmin Marine Network
The 4208 connects easily to the high-speed Garmin Marine Network, so you can interface with additional MFDs and add remote sensors. Once connected, you can share information between the 4208 and other chartplotters on your boat. You also can add high-powered radar, sonar and XM satellite weather and radio to your system.
Physical & Performance
|
Unit dimensions, WxHxD
|
11.2" x 7.0" x 4.6" (28.5 x 17.8 x 11.7 cm)
|
Display size, WxH
|
6.9" x 5.2"; 8.4" diagonal
(17.5 x 13.2 cm; 21.3 cm diagonal)
|
Display resolution, WxH
|
640 x 480 pixels
|
Display type
|
VGA display
|
Weight
|
5.0 lbs (2.27 kg)
|
Water rating
|
IPX7
|
Receiver
|
10 Hz high-sensitivity
|
Antenna
|
External only
|
Mounting options
|
Bail or Flush
|
Power consumption
|
Max power usage at 10 Vdc: 35 W
Max current draw at 12 Vdc: 2.3 A
|
Maps & Memory
|
Preloaded maps
|
BlueChart® g2 (coastal maps)
|
Accepts data cards
|
1 SD™ card
|
Waypoints
|
1,500
|
Routes
|
20
|
Track log
|
10,000 points; 20 saved tracks
|
Features & Benefits
|
Garmin Radar compatible
|
Yes
|
Garmin Sonar compatible
|
Yes (with GSD™ black box, sold separately)
|
NMEA 2000® compatible
|
Yes
|
NMEA 0183 compatible
|
Yes
|
Garmin Marine Network™ compatible
|
Yes
|
Garmin SmartMode compatible (customizable monitor presets)
|
No
|
Supports AIS (tracks target ships position)
|
Yes
|
Supports DSC (displays position data from DSC-capable VHF radio)
|
Yes
|
Tide tables
|
Yes
|
Garmin Meteor Audio System compatible
|
No
|
Supports Fusion Lync compatible marine radios
|
No
|
GSD™ Black Box sonar support
|
Yes
|
GCV™ Black Box sonar support
|
No
|
SiriusXM™ Weather & Radio compatible
|
Yes
|
BlueChart® Mobile (planning) compatible
|
Yes (Wi-Fi Adapter Kit required, sold separately)
|
Garmin Helm compatible
|
No
|
GRID™ (Garmin Remote Input Device) compatible
|
No
|
Wireless remote compatible
|
Yes
|
Wireless mouse compatible
|
Yes
|
Sonar Features & Specifications
|
Dual-frequency (50/200 kHz) sonar capable
|
Yes (with compatible black box sonar)
|
Dual-beam (77/200 kHz) sonar capable
|
Yes (with compatible black box sonar)
|
CHIRP sonar technology
|
Yes (with external black box)
|
DownVü™
|
No
|
SideVü™
|
No
|
Voltage range
|
10-35 Vdc input
|
Connections
|
NMEA 0183 input ports
|
4
|
NMEA 0183 output ports
|
2
|
Video input ports
|
2 - RCA composite
|
Video output ports
|
1 - VGA
|
Wireless connectivity
|
Yes (Wi-Fi Adapter Kit required, sold separately)
|
Garmin Marine Network™ ports
|
3
|
- GPSMAP 4208
- Flush mount
- Bail mount
- GPS 19x NMEA 2000®
- Power cable
- NMEA 0183 cable
- Video cable assembly
- Marine grommet kit
- Protective front cover
- Owner's manual
- Installation instructions
